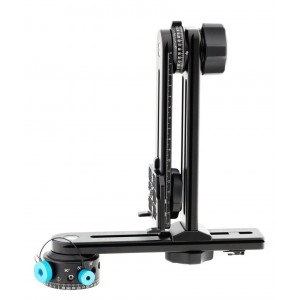

NN6 Starter Package (F6001)

Nodal Ninja 6 (NN6) is the successor to Nodal Ninja 4 and Nodal Ninja 5, and is the first model that is compatible with the coming motorized rotator, capable of transforming into a 2-axis fully automatic pan/ tilt head with diverse functions.

More details


$543.95

F6001

Availability: In Stock



Level: Amateur - Pro.
Lenses: 8-200mm+.
Cameras: DSLR's
Features: Comfortable Size - Strong - Upper Rotator 7.5 degree positive stops or free rotation
Uses: General, Landscape, High Resolution, Gigapixels, Commercial, HDR
After researching and developing superior mechanical panoramic hardware for a decade, Fanotec is now pushing the envelope by incorporating robotic components to the design. A range of products developed from the ground up together with the robotic developments will replace some of the legacy products.
Nodal Ninja 6 (NN6) is the successor to Nodal Ninja 4 and Nodal Ninja 5, and is the first model that is compatible with the coming motorized rotator, capable of transforming into a 2-axis fully automatic pan/ tilt head with diverse functions.
It is also the first low cost ALL CNC machined panoramic head in the product line. We carefully examined the Ultimate line and listened to end user feedback to optimize these newer designs. By reducing the number of quick release components, overall cost is much reduced. The NN6's will have quality standards very similar to the Ultimate line incorporating hard anodized coating.
Features:
Compact upper rotator with precise 7.5 degrees detent lock (positive stops) which can be disabled on the fly by simple turning of a lever to allow free rotation and locking at arbitrary angle. A legendary design in NN5, now with double the number of locking positions doubling the maximum focal length.

Supporting up to 200mm equivalent focal length (camera in portrait orientation) with detent lock (higher focal lengths possible with free rotation).

New anti-twisting camera mounting plate that mounts to the camera by using an easy to grip, glove friendly knob. No tools needed.
Arca Swiss compatible rails allow use of QR clamps and other compatible accessories.
Supports most DSLRs with or without battery grip.
Come standard with custom made Advanced Rotator D10 (RD10) as default. Compact, lightweight with 10 detent options ranging from 90 to 5 degrees which are easily changed on the fly.
Compatible with other advanced rotators.
Optional Quick Release Nadir Adapter that combines the function of quick release and nadir adapter, for rapid mounting / dismounting the vertical assembly and effortlessly taking clean nadir shot (down shot).
Features of the NEW Advanced Rotator D10
Many people have requested a rotator that has the size of advanced Rotator D5 but with more detent options. Advanced Rotator D10 is the answer. It achieves the best balance of size and versatility.
Features:
Compact, lightweight with 10 detent options ranging from 90 to 5 degrees that can be changed on the fly. Suitable for fisheye, wide angle and telephoto lenses up to 200mm equivalent focal length with camera in portrait orientation.
10 different degree stop increments (with equivalent number of stops around) include:
5 (72 stops)*
7.5 (48 stops)*
10 (36 stops)
15 (24 stops)
18 (20 stops)*
30 (12 stops)*
36 (10 stops)
45 (8 stops)*
60 (6 stops)
90 (4 stops)
*Requires dual detent plungers.
Specs:
Weight: 2.02lbs (920g)
Lower rail: 200mm
Upper and vertical rail: 190mm
Available in mid to late September - accepting pre-orders now.
Introductory Offer (expires Oct 30th)
Buy now and receive Free NN6 Quick Release Nadir Adapter Upgrade - a $49.95 value!
Note: Images shown with QR Nadir Adapter Installed.

Level: Amateur - Pro.

Lenses: 8-200mm+.

Cameras: DSLR's

Features: Comfortable Size - Strong - Upper Rotator 7.5 degree positive stops or free rotation

Uses: General, Landscape, High Resolution, Gigapixels, Commercial, HDR



After researching and developing superior mechanical panoramic hardware for a decade, Fanotec is now pushing the envelope by incorporating robotic components to the design. A range of products developed from the ground up together with the robotic developments will replace some of the legacy products.



Nodal Ninja 6 (NN6) is the successor to Nodal Ninja 4 and Nodal Ninja 5, and is the first model that is compatible with the coming motorized rotator, capable of transforming into a 2-axis fully automatic pan/ tilt head with diverse functions.



It is also the first low cost ALL CNC machined panoramic head in the product line. We carefully examined the Ultimate line and listened to end user feedback to optimize these newer designs. By reducing the number of quick release components, overall cost is much reduced. The NN6's will have quality standards very similar to the Ultimate line incorporating hard anodized coating.



Features

  • Compact upper rotator with precise 7.5 degrees detent lock (positive stops) which can be disabled on the fly by simple turning of a lever to allow free rotation and locking at arbitrary angle. A legendary design in NN5, now with double the number of locking positions doubling the maximum focal length.
  • Supporting up to 200mm equivalent focal length (camera in portrait orientation) with detent lock (higher focal lengths possible with free rotation).
  • New anti-twisting camera mounting plate that mounts to the camera by using an easy to grip, glove friendly knob. No tools needed.
  • Arca Swiss compatible rails allow use of QR clamps and other compatible accessories.
  • Supports most DSLRs with or without battery grip.
  • Come standard with custom made Advanced Rotator D10 (RD10) as default. Compact, lightweight with 10 detent options ranging from 90 to 5 degrees which are easily changed on the fly.
  • Compatible with other advanced rotators.
  • Optional Quick Release Nadir Adapter that combines the function of quick release and nadir adapter, for rapid mounting / dismounting the vertical assembly and effortlessly taking clean nadir shot (down shot).



Features of the NEW Advanced Rotator D10



Many people have requested a rotator that has the size of advanced Rotator D5 but with more detent options. Advanced Rotator D10 is the answer. It achieves the best balance of size and versatility.



  • Compact, lightweight with 10 detent options ranging from 90 to 5 degrees that can be changed on the fly. Suitable for fisheye, wide angle and telephoto lenses up to 200mm equivalent focal length with camera in portrait orientation.
  • 10 different degree stop increments (with equivalent number of stops around) include:
  • 5 (72 stops)*
  • 7.5 (48 stops)*
  • 10 (36 stops)
  • 15 (24 stops)
  • 18 (20 stops)*
  • 30 (12 stops)*
  • 36 (10 stops)
  • 45 (8 stops)*
  • 60 (6 stops)
  • 90 (4 stops)
  • *Requires dual detent plungers.



Specs



Weight: 2.02lbs (920g)

Lower rail: 200mm

Upper and vertical rail: 190mm



Note: Images shown with QR Nadir Adapter Installed.



Nikon AF-S 24-70mm f/2.8G is not compatible.
